Used WEBB R-3-L | Rolls, Bending & Curving

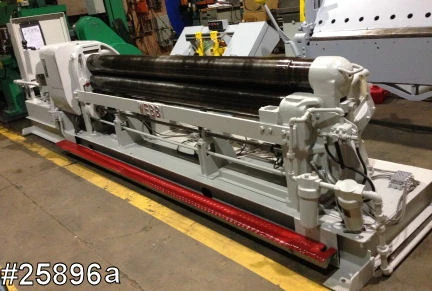

8 FT. X 10 GA. WEBB SLIP ROLL, Model no. R-3-L

Capacity: 8'2" x 10 ga. mild steel
Roll diameter: 7"
Roll length: 98"
Pass line: 34"
Speeds approx.: 18 FPM
EQUIPPED WITH: Air drop end with control & automatic balance bar
Electric foot switch
Power rear roll & power bottom roll adjustment with
position indicators
Pushbuttons for start - stop
Drum switch for forward - off - reverse
Full length emergency foot treadle
Longitudinal grooves in rear & bottom rolls
3 HP 1150 RPM 220/440/3/60 rear roll adjustment motor
1 HP 575 RPM 220/440/3/60 bottom roll adjustment motor
7.5 HP 1135 RPM 220/440/3/60 motor
Weight approx. 8500 lb.
Overall dimensions approx. 200" L-R x 50" F-B x 80" H
