Used BERTSCH 808 | Rolls, Bending & Curving

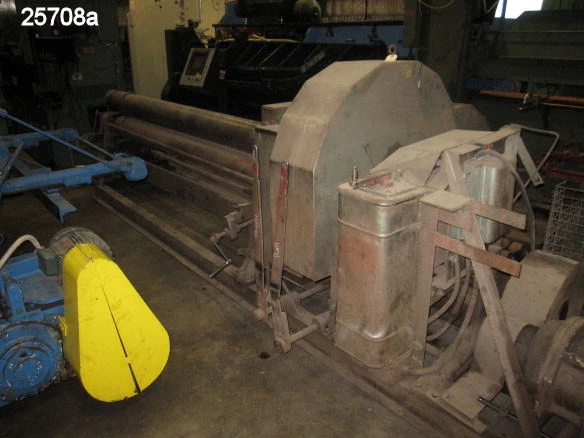

8 FT. X 3/8" BERTSCH PLATE BENDING ROLL, Model no. 808

Initial type
Capacity: 8' x 3/8" mild steel
Roll diameter: 8"
Roll length: 98"
Speeds approx.: 20 FPM
Pass line: 34"
EQUIPPED WITH: Manual drop end with automatic balance bar
Pushbuttons for start - stop
Manual rear roll & bottom roll adjustment
Drum switch for forward - reverse - off
Longitudinal grooves in rear & bottom rolls
Approx. 7.5 HP 1200 RPM 440/3/60 motor
Weight approx. 11,500#
Overall dimensions approx. 214" L-R x 76" F-B x 66" H
