Used 1997 TRUMPF 200R | Punches, Turret

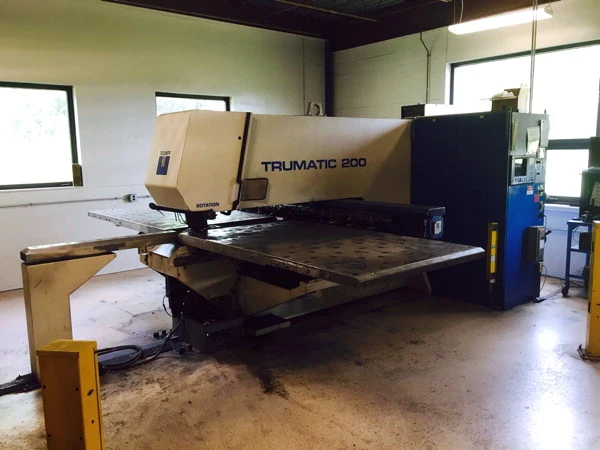

1997 Trumpf Model Trumatic 200R CNC Turret Punch

Hit Rate @ 1" centers 265 strokes/minute
Nibble Rate 420 strokes/minute
Roller ball table
Max Punch diameter 3"(76mm)
Max sheet thickness .25"(3.65mm)
Max position speed X axis- 2400 IPM
Max position speed Y axis- 1600 IPM
Max position speed simultaneous- 2900 IPM
Drive Type X, Y, C axes- AC Motors
Punching axis- Hydraulic
Punching accuracy +/- .002"
Repeatability +/- .0012"
Max sheet size 50"(1270mm) x 80"(2032mm)(X,Y)
ATC 15
Work sheet clamps 2
Tool change time 1.5- 6.5 seconds
Foot print 436"L x 240"D

Equipped With

Bosch Trumagraph CC220 control
