Used 2015 POREBA HBM-4/3MT | Boring Mills, Horizontal, Table Type

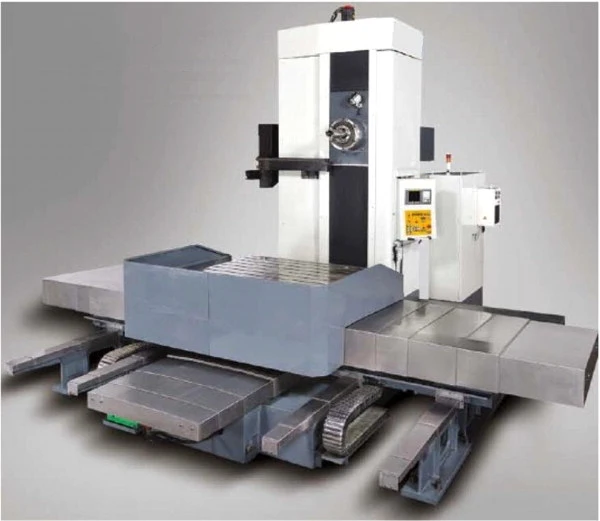

2015 (NEW) Poreba Model HBM 4-3 4.3" 4-Axis CNC Table Type Horizontal Boring Mill

Table Dimension: 62.9" X 70.8"
Work Table Travel X-Axis: 118.1"
Spindle Travel Y-Axis: 78.7"
Work Table Travel Z-Axis: 59.0"
Spindle Travel W-Axis: 23.6"
Table T-Slot: .86" X 9
Max. Loading Weight: 22,046 Lbs.
Rotary Table Indexing: .001 Degrees (Full 4th)
Maximum Rotation Diameter: 94.8"
Table Rotation Speed: 0.8 RPM
Maximum Table Thrust: 6,480 N
Main Motor: 18/22 KW (24/29 HP)
Maximum Spindle Speed: 5-2,000 RPM
Spindle Taper: ISO 50/BT 50
Spindle Diameter: 4.3"
Spindle End Diameter: 8.4"
Maximum Spindle Torque: 1245 Nm
Maximum Spindle Thrust: 19,600 N
Rapid Feed (X,Y,Z): 393 IPM
Rapid Feed (W): 118 IPM
Feed Rate X/Y Axis: 1-196 IPM
Feed Rate Z/W Axis: 1-118 IPM
Power Capacity: 65 KVA
Machine Dimensions: 250" X 350" X 188" (LxWxH)
Machine Weight: 70,547 Lbs.


Equipped with:

CNC Control (Fanuc, Siemens, Heidenhain)
