Used 2014 ROPER WHITNEY AB1214 AUTOBRAKE SERIES | Folding Machines

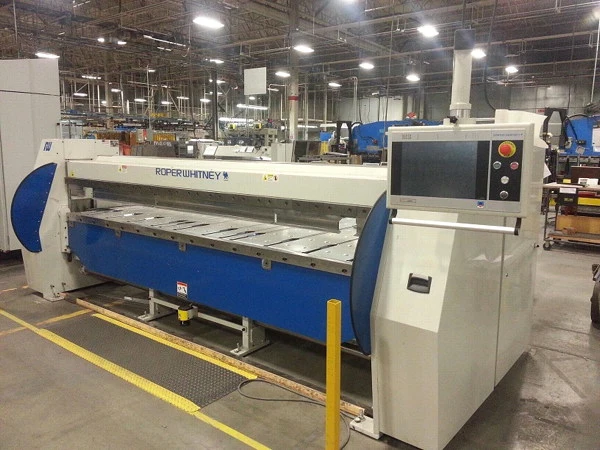

2014 Roper Whitney Model AB1214 "Autobrake Series" CNC Folding Machine

Bending Capacity (Mild Steel): 14ga/2,0mm
Bending Capacity (Stainless): 16ga/1,6mm
Bending Length: 147.5"/3750mm
Bending Bars: .787"/20mm & 0.390
Back Gauge Depth (Standard): 39.37"/1000mm
Back Gauge Depth Increased: on request
Clamping Beam Open Height: 7.3"/185mm
Clamping Beam Straight Bar Tooling: 30"
Folding Beam Adjustment: 2"/50mm
Crowning of Folding Beam: 5 point 0"-0.030" Adjustment
Back Gauge Servo Motor: 3/4 HP
Clamping Beam Motor: 2 HP
Working Height: 35"
Bending Beam Motor: 3 HP
Machine Dimensions: 181" X 89" X 68" (LxWxH)
Machine Weight: 10,350 Lbs

Approximate Weight: 11,000 Lbs.
