Used 1980 OKAMOTO ACCUGAR 124N | Grinders, Surface, Recip.

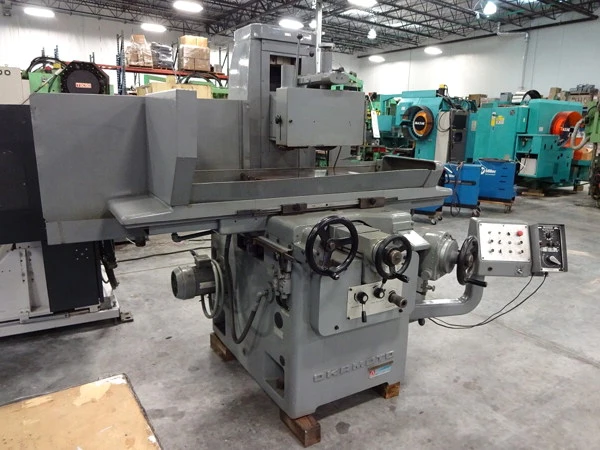

1980 Okamoto Accugar Model 124N Automatic Horizontal Surface Grinder

Maximum Grinding Length: 24"
Maximum Grinding Width: 12"
Maximum Height Under 14 Wheel: 13.7"
Maximum Longitudinal Movement: 29.5"
Maximum Cross Movement: 13.6"
Feeds:
Longitudinal Hydraulic Feed: 1 To 100 Fpm
Cross Feed
Hydraulic Intermittent: .02 -.8
Hydraulic Continuous: 0.4 - 40 Ipm
Hand Feed/Revolution: 0.25"
Graduation Of Wheel: .001
Vertical Movement Of Wheelhead
Auto Feed/Table Stroke: 0.0001 - .00015"
Auto Feed/Saddle Reversal: 0.0001 - .00015"
Hand Feed/Revolution: .05
Graduation Of Handwheel: .0001
Rapid Feedrate: 19 Ipm
Grinding Wheel: 12" X 1-1/2" X 5"
Spindle Motor: 5 Hp
Hydraulic Pump Motor: 3 Hp
Vertical Rapid Feed Motor: 0.5 Hp

Equipped With:

Over The Wheel Dresser
12" x 24" Kanet Electro Magnetic Chuck and Nuetrifier
3 Axis Incremental Down Feed
Coolant Piping
Hydraulic System
