Used UNION BF63 | Boring Mills, Horizontal, Table Type

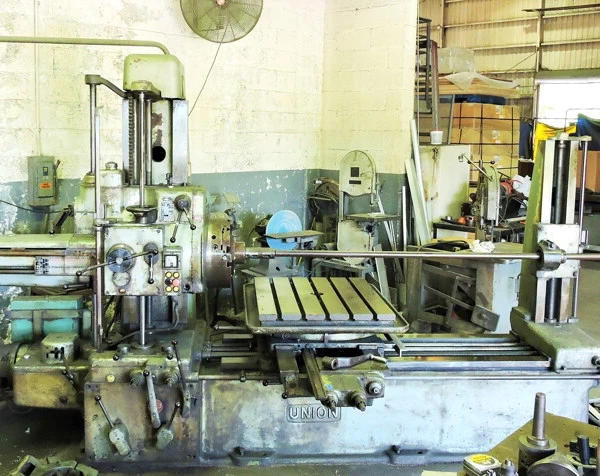

Union Model BF63 2.5" Table Type Horizontal Boring Mill

Built in Germany

Diameter of Spindle Bar: 2.5"
Built in Rotary Table Size: 28" X 35"
Taper in Spindle: No.4 MT
Table Cross Feed: 31"
Spindle-Head Vertical Travel: 28"
Spindle In-Out Travel: 22"
Spindle Speeds: 8-1400
Facing Head Diameter: 15"
Table Index: 360 deg
Main Motor Drive: 5 HP

Equipped With

Built in Rotary Table
Tailstock / Outboard Support
15" Diameter Facing Head
Pendant Control

Approximate Weight: 10,000 Lbs.
