Used 1966 BULLARD DYNATROL 36" | Lathes, VTL (Vertical Turret Lathe)

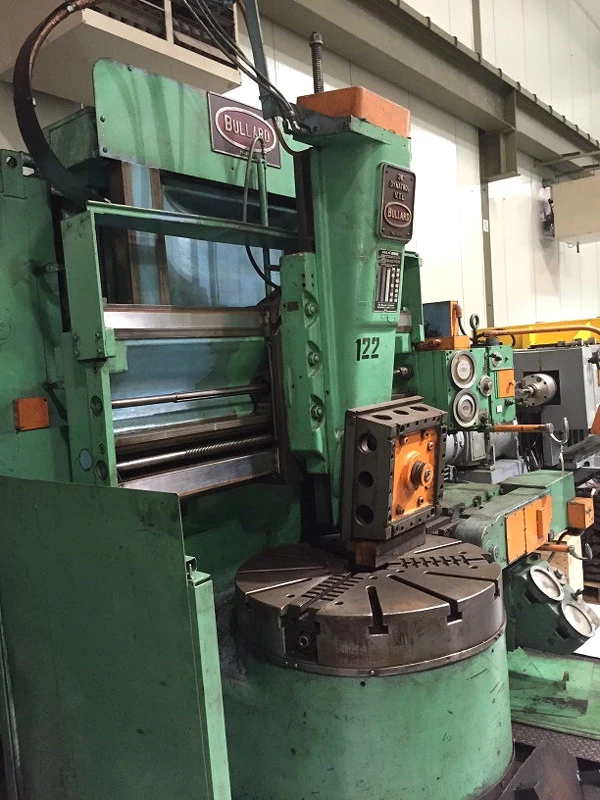

1966 Bullard Model Dynatrol 36" (2) Head Vertical Turret Lathe

Diameter of 3 Jaw Table: 35.4"
Maximum Swing Side Head Up: 39"
Maximum Swing Side Head Down: Approx. 48"
Maximum Height Under Cross Rail: 32"
Turret Travel: Approx. 26"
Maximum Distance Top of Side Head Turret Above the Table:Approx. 22"
(12) Table Speeds: 8 to 300 RPM
(8)Side Head Feeds: .002 to .068 TPR
Main Motor: 50 HP


Equipped with:

4 Position Turret Head
Rapid Traverse
50 HP Motor
4 Position Side Head
Hardened Ways
Coolant Pan, Splash Guards & Coolant Pump
