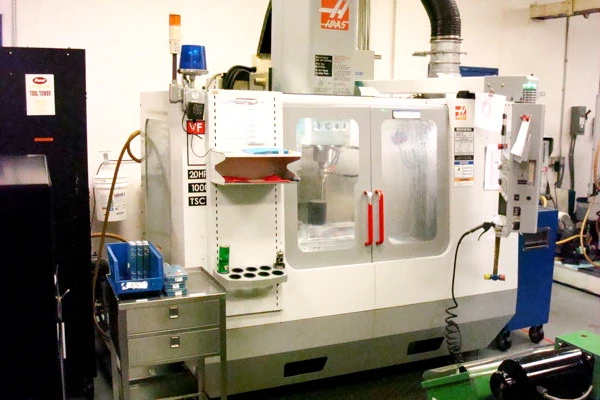

2003 Haas Model VF-1 3 Axis Vertical Machining Center

X Axis: 20 " 508 mm
Y Axis: 16 " 406 mm
Z Axis: 20 " 508 mm
Spindle Nose to Table (~ max): 24 " 610 mm
Spindle Nose to Table (~ min): 4 " 102 mm
TABLE S.A.E. METRIC
Length: 26 " 660 mm
Width: 14 " 356 mm
T-Slot Width: 5/8 " 16 mm
T-Slot Center Distance: 4.92 " 125.0 mm
Number of Std T-Slots: 3 3
Max Weight on Table (evenly distributed):3000 lb 1361 kg
SPINDLE S.A.E. METRIC
Max Rating: 20 hp 22.4 kW
Max Speed: 10000 rpm
Taper: CT 40 CT or BT 40
Bearing Lubrication Air/Oil Injection Air/Oil Injection
Cooling Liquid Cooled Liquid Cooled
FEEDRATES S.A.E. METRIC
Rapids on X: 1000 in/min 25.4 m/min
Rapids on Y: 1000 in/min 25.4 m/min
Rapids on Z: 1000 in/min 25.4 m/min
Max Cutting: 650 in/min 16.5 m/min
AXIS MOTORS: S.A.E. METRIC
Max Thrust X: 2550 lb 11343 N
Max Thrust Y 2550 lb 11343 N
Max Thrust Z 4200 lb 18683 N
TOOL CHANGER: S.A.E. METRIC
Type: Carousel
Capacity: 20
Max Tool Diameter (full): 3.5 " 89 mm
Max Tool Weight: 12 lb 5.4 kg
Tool-to-Tool (avg): 4.2 sec 4.2 sec
Chip-to-Chip (avg): 4.5 sec 4.5 sec
GENERAL S.A.E. METRIC
Air Required: 4 scfm, 100 psi 113 L/min, 6.9 bar
Coolant Capacity: 55 gal 208 L

Equipped With

Through Spindle Coolant
