2005 MAZAK QTN-350M
Lathes, CNC

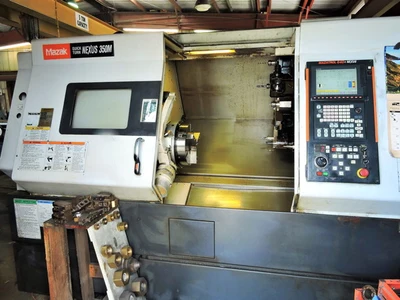

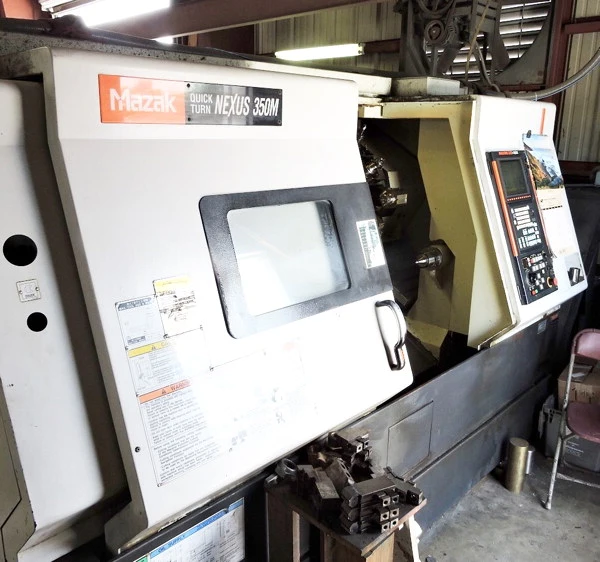

2005 Mazak Model Nexus QTN-350M Live Tool CNC Lathe
2005 Mazak Model Nexus QTN-350M Live Tool CNC Lathe
Front and Rear 12" Hydraulic Chucks, Live Tooling
Maximum Cutting Diameter: 16.5"
Maximum Cutting Length: 28"
Maximum Swing: 29.5
X Axis Trav: 10.13"
Z Axis Travel: 28"
Spindle Speeds: 2500 RPM
Bar: 4"
Number of Tool Positions: 12
Milling Spindle Speed: 5000 RPM
Spindle Drive Motor: 30/40 HP
Equipped With
Mazatrol Fusion 640T Control
(2) 12" Front and Rear Hydraulic Chucks
(3) Live Tool Holders
Chip Conveyor
Tailstock
10.4 Color LCD
3.5 FDD Unit
Tool Eye Presetter
Mazatrol Fusion 640T Control
118 PSI High Pressure Coolant
Milling Synchro Tapping
Operator Door Interlock with Lock-Switch
Approximate Weight: 16,000 Lbs
