Used 2006 NTC ZH4000 | Machining Centers, Horizontal

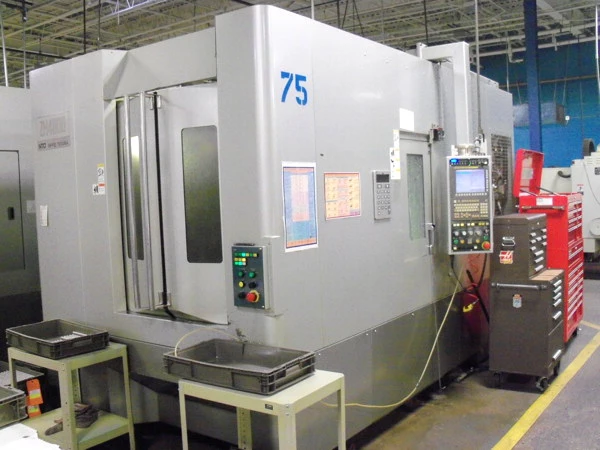

2006 NTC Model ZH4000 CNC Horizontal Machining Center

Pallet Size: 15.7" X 15.7"
X-Axis Travel: 25"
Y-Axis Travel: 22"
Z-Axis Travel: 22"
Max. Table Load: 550 Lbs.
Rapid Traverse Rate (X/Y/Z): 2,362.2 IPM
Cutting Feed Rate: 0.04 - 1,181.1 IPM
Spindle speed: 100 - 12,000 RPM
Spindle bearing diameter: 3.14"
Spindle motor: 25/20
Type of tool shank / Pull stud type:CAT40/P40T-1
Tool change / Magazine / # of tools:twin arms / disc / 40
Dimensions W x L x H: 98.6 x 182.9 x 104.3
Weight: 20,400 Lbs.


Equipped with:

Tombstone
