Used 1993 BETENBENDER SV2800-72 | Shears, Power Squaring (In)

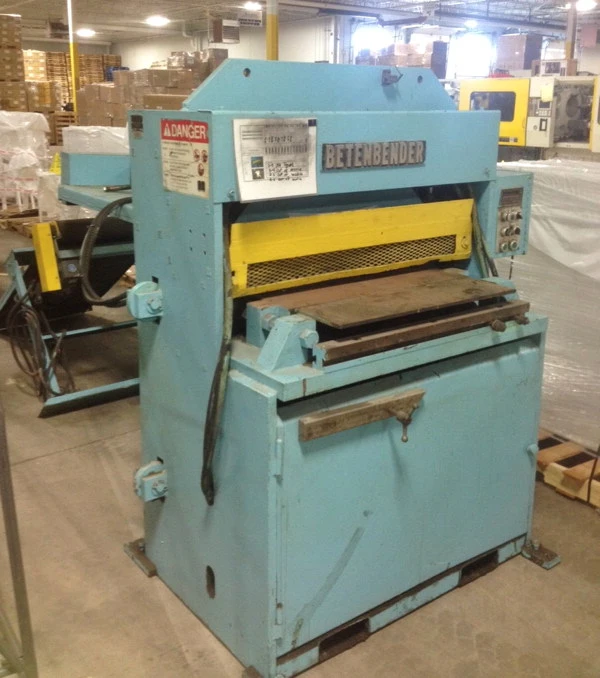

1993 Betenbender 1/2" x 2' Hydraulic Power Squaring Shear

1/2" Capacity, 24" Cutting Length, Front Operated Power Back Gauge

Specifications and Equipment

Maximum Cutting Length:
24"

Cutting Thickness Capacity:
1/2"

Equipped with:
APH 0105 & 2510 Hydraulic Modular Automation Pumps, Wardcraft Slug Vayor Conveyor, Model SV2800-72, Baldor Motor & Drive, 1/2 HP 70 FPM 115-1-60

Features:
Controls: Push button and switch controls are at your fingertips. The fully guarded, 2-position 110v footswitch lets you interrupt the cutting stroke at any point in its cycle.

Easy Material Handling:
A sturdy backgauge and rake angle adjustment minimizes twist and distortion. This makes it possible to increase the rake for cutting heavier stock and extend maximum capacity of the machine. A 4' squaring arm with a recessed scale makes for fast, easy measurement.

Electrical System:
Meets NFPA 79 and construction requirements of the ANSI B11.4. All machines have disconnect switches magnetic starters, 110/120v controls, and 208-230/460v 3 phase, others optional

Backgauges:
A Betenbender Shear is capable of shearing 1/8" (10 GA) material to the following tolerance: Dimension - The width of the off-cut portion of the workpiece is within 0.005 inch of the backgauge setting.
