Used CINCINNATI 110OBS | Presses, C-Frame

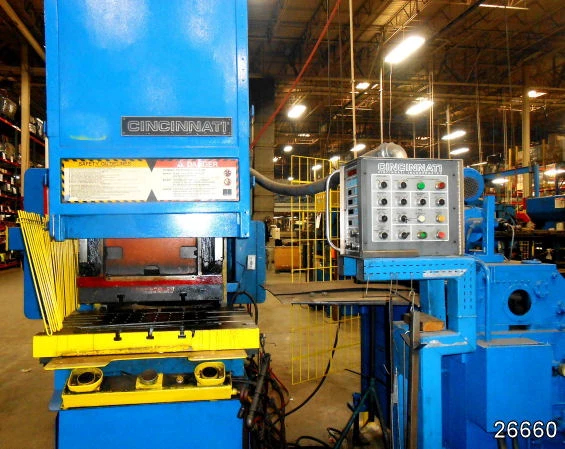

110 TON CINCINNATI HYDRAULIC C FRAME PRESS

With 14 ton cushion; 8 point gib guided slide
Model 110OBS
Floor standing
Bed area: 42" L-R x 25" F-B
Bolster: 42" L-R x 27" F-B x 4" thick (T-slotted)
8 point gib guided slide: 28" L-R x 23" F-B
Slide bolster: 28" L-R x 21" F-B x 3" thick (T-slotted)
Stroke: 0 - 10" maximum
Stroke of cushion: 0 - 5" maximum
Daylight opening (total): 24" maximum
Daylight opening
(between bolster): 17" maximum
Throat depth: 15"
Ram diameter: 10.5"/9" @ 2540 PSI - 110 tons
(With 5.5" internal jack ram)
Floor to top of bed: 37"
Power unit: Submerged hydraulic pump, driven by
25 HP 1800 RPM 230/460/3/60 motor
Speeds approx.: 600"/minute closing
150"/minute medium closing
60"/minute pressing to 110 tons
350"/minute low return
600"/minute return
Controls: Pushbutton operation with stroke,
pressure & speed control
Dual palm buttons
Electric foot switch
Controller for top stop, speed,
stroke reversal & tonnage
Selector switch for low, medium high speed
Selector switch for die change, inch,
single stroke & automatic
Knockouts
Hydraulic die clamps
Pressure gauge
Weight approx. 23,000#
Overall dimensions approx. 72" L-R x 98" F-B x 140" H
