Used 1999 LVD PPBL-H40/20 | Brakes, Press

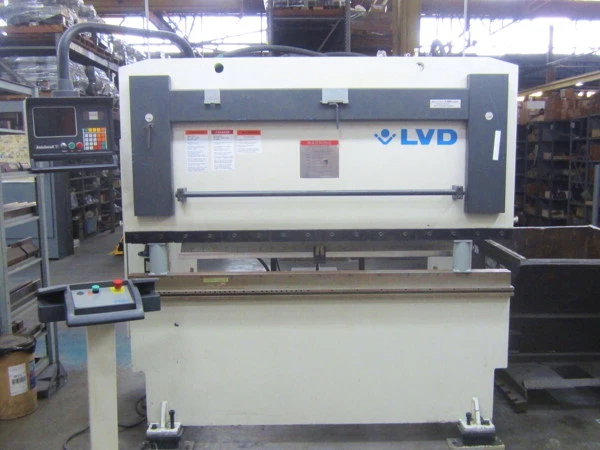

1999 LVD Model PPBL-H40/20 40 Ton 3-Axis CNC Hydraulic Press Brake

Overall Work Length: 78"
Tonnage Capacity: 40 Tons
Distance Between Columns: 64"
Stroke: 3.9"
Daylight Opening: 11.8"
Current Electrical Arrangement: 230/3/60

Equipped with:

Upper and Lower Die Holder
Pedestal Control Station with Dual Palm and Foot Control
Hurco Autobend 7 3-Axis (X,Y,R) CNC Back Gauge 28" Range
3-Axis (X,Y,R)

Dimensions: 87" X 84" X 55"

Approximate Dimensions: 87"(LR) X 84"(FB) X 55"(H)
Approximate Weight: 7,700 Lbs.
