Used OKUMA LR-15 | Lathes, CNC

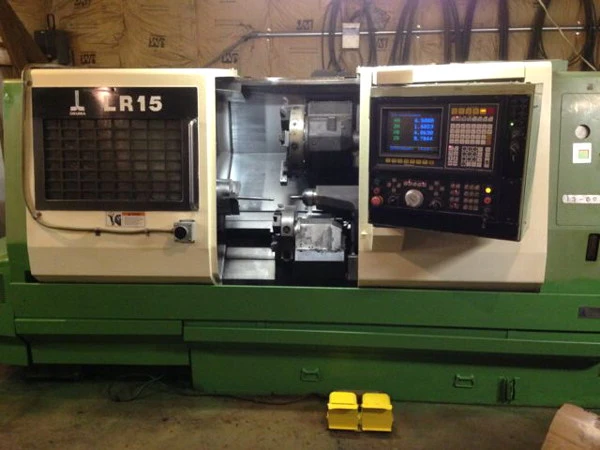

Okuma Model LR-15 Twin Turret CNC Lathe

Swing Over Bed: 17.72"
Swing Over Saddle: 11.81"
Maximum Turning Diameter: 9.45"
Maximum Turning Length: 9.84"
Upper Turret Z-Axis: 20.47"
Lower Turret Z-Axis: 20.47"
Upper Turret X-Axis: 7.68"
Lower Turret X-Axis: 4.92"
Upper Turret Positions: 12
Lower Turret Positions: 8
Spindle Speeds: 75-4200 RPM
Main Motor: 20 HP
Spindle Bore: 3.94"
Hole Through Spindle: 2.44"
Rapid Traverse (X-Axis): 472 IPM
Rapid Traverse (Z-Axis): 591 IPM

Equipped with:

OSP 5020L CNC Control
8" 3-Jaw Chuck
Coolant Pan and Pump
Chip Conveyor
Misc. Tool Holders
