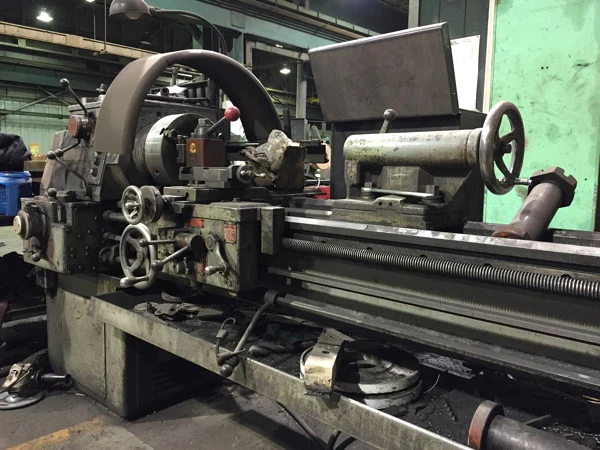

Southbend 17" Turn-nado Geared Head Tool Room Engine Lathe

Swing Over Bed And Saddle Wings ----------- 17-1/8"
Swing Over Cross Slide -------------------- 10-1/2"
Swing Over Cross Slide Without Chip Guard 11-1/4"
Distance Between Centers ------------------ 80"
Spindle Nose ------------------------------ D1-8 Camlock
Headstock Spindle Taper ------------------- No. 5 Morse
Spindle Bore ------------------------------ 2-9/16"
Spindle Speeds ------- ( 18 ) ------------- 30 To 1580 Rpm
Main Drive Motor -------------------------- 7.5 / 3.75 Hp 3/60
Threading Capacity:
With 20 Tooth Gear -- ( 60 ) ------------ 2-3/4 To 160 Tpi
With 40 Tooth Gear -- ( 10 Extra Threads ) 1-3/8 To 2-1/2 Tpi
Longitudinal Feeds ---- ( 60 ) ------------ 0.0021 To .1242 Ipr
Power Cross Feeds ----- ( 60 ) ------------ 0.0011 To 0.0678
Tailstock Spindle ------------------------- No. 4 Morse

Equipped with

Dorian quick change Tool Post
15" 3 jaw chuck
Tailstock
Chuck Guard
Work Light
Flame Hardened Ways

Approximate Dimensions: 136"(LR) X 37"(FB) X 53"(H)
Approximate Weight: 5,000 Lbs.
