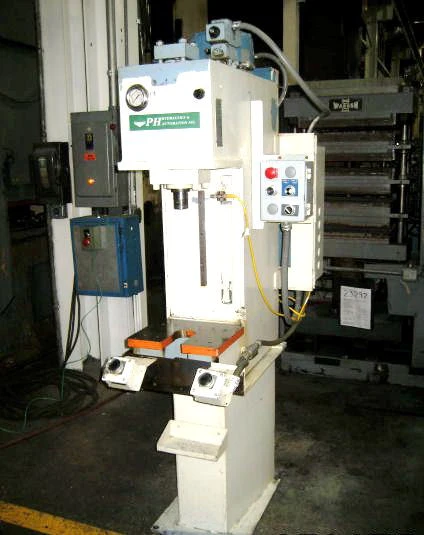

Used 1994 PH PHN-8 | Presses, C-Frame

1994 8 TON PH HYDRAULIICS HYDRAULIC C FRAME PRESS

Mfd. 1994
Model PHN-8
Table model on factory stand
Bed area: 14" L-R x 11" F-B w/3" U-slot
Stroke: 0 - 12" maximum
Daylight opening (total): 18" maximum
Throat depth: 7"
Ram diameter: 3.25"/2" @ 1925 PSI - 8 tons
Floor to top of bed: 36"
Power unit: Hydraulic pump, driven by
5 HP motor
Speeds approx.: 419"/min. closing
158"/min. pressing to 8 tons
255"/min. return
Controls: Pushbutton operation w/stroke &
pressure control
Dual touch palms
Pressure gauge
Weight approx. 1500#
Overall dimensions approx. 30" L-R x 54" F-B x 74" H
