Used 1991 MORI SEIKI ZL-25B/1000 | Lathes, CNC

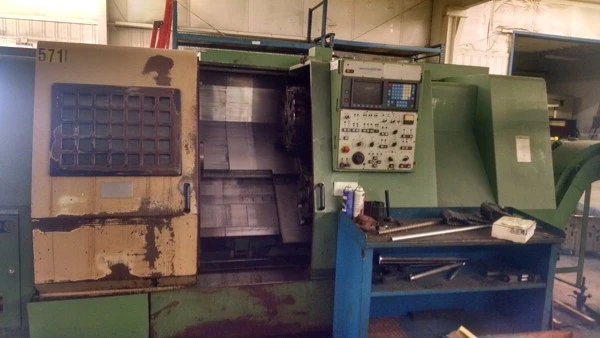

1991 Mori Seiki Model ZL-25B/1000 4 Axis CNC Lathe

Swing over Bed: 20.5"
Swing over Cross Slide: 13.8"
Between Centers: 39.9"
Max. Machining Diameter: 10.2"
Max. Machining Length: 21.7"
X-Axis: 6.3"
Z-Axis: 39.6"
Spindle speed: 4204200 RPM
Spindle nose: A-6
Hole thru spindle: 2.4"
Spindle I.D.: 4.3"
Shank height for square tool: 1"
Shank diameter for boring bar Max." 2"
Rapid feed rate (Z-Axis): 590.6"
Tailstock stroke: 23.2"
Tailstock quill taper: MT3
Tailstock quill stroke: 3.1"
Electric power supply: 40 KVA
Machine Weight (approx): 15,400 LBS


Equipped with:

Fanuc 0T CNC controls
Twin Turrets
Tailstock
Chip Conveyor
Splash guards
10" 3Jaw Chuck
