Used 1985 GIDDINGS & LEWIS WINSLOWMATIC HR | Grinders, Drill

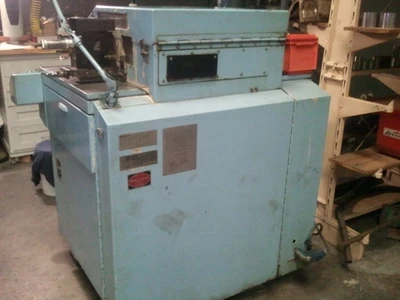

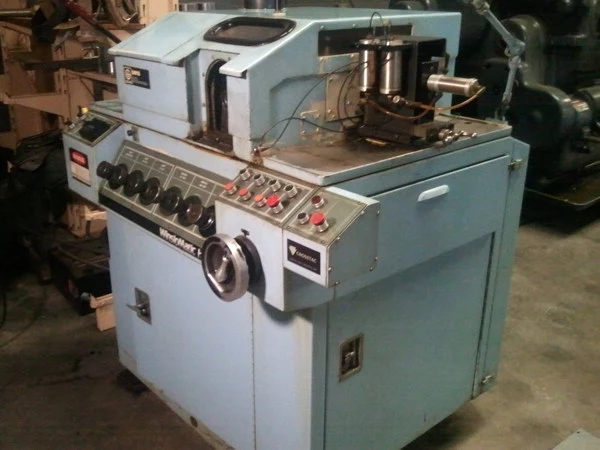

1985 Giddings & Lewis Model WinsloMatic HR Drill Point Grinder

1.5" diameter capacity G&L WinsloMatic Model "HR" Drill Point Grinder


1.5" Maximum drill dia., 12" X 0.75" Grinding Wheel,


Specifications and Equipment

Diameter ground, standard drills: 0.0625" (min.) to 1.5" (max.)
Diameter ground, helical drills: 0.0625" (min.) to 1.5" (max.)
Diameter ground, Racon drills: 0.125" (min.) to 1" (max.)
Diameter ground, Bickford drills: 0.125" (min.) to 1" (max.)
Diameter ground, split-point drills: 0.0625" (min.) to 0.5" (max.)
Drill point angles ground: 60 to 120 Degrees
Grinding wheel size: 12" (diameter) X 0.75" (face) X 5" (bore)

Additional features:

(8) Index Bushing, Plates (Mostly Metric)
Drill Holders Up to 3/4", (1) Wheel Hubs
Set-Up Charts, Cycle Counter, Flood
Coolant, Work Light pneumatic
Diamond, Dresser, Additional Tooling
