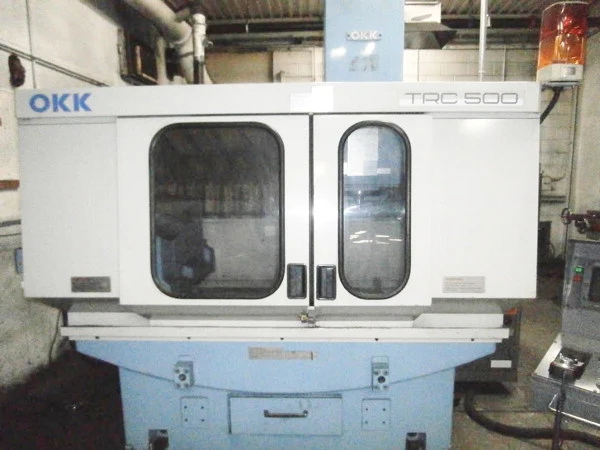

Used 1997 OKK TRC-500 | Machining Centers, Vertical

1997 OKK Model TRC-500 3 Axis CNC Vertical Machining Center

Table Work Surface: 43.30" x 20.47"
X Axis Travel: 32.28"
Y Axis Travel: 20.47"
Z Axis Travel: 16.14"
Spindle Travel: 22.00"
Spindle Nose to Table Top, 5.9" - 22.95"
Table Load Capacity: 1000 Lbs.
Cutting Rate Feed: 1- 5,000 MM/Min
Rapid Traverse Rates: 16000 MM/Min
AC Axis Drive Motors (Peak): Thrust
Spindle Type/Taper Ram Head: 40 CAt
Spindle Speeds : 12,000 RPM
Main Motor Dirve: 5 HP

Equipped with:

Mitsubishi/OKK Meldas 300V Control
7 Position Automatic Tool Changer
Handy Pulser Manual Pulse Generator

Approximate Weight: 11,000 Lbs
