Used 2013 TECHNIDRILL 2.750- | Drills, Deep Hole

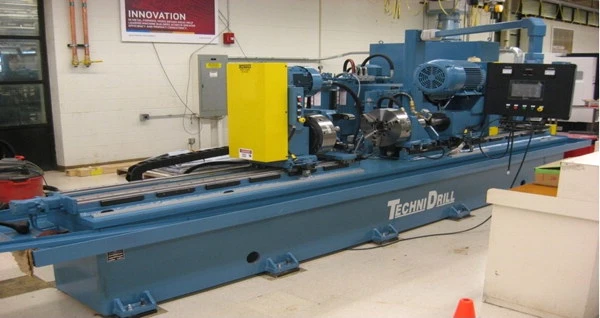

2013 Technidrill 2.750-40-40-1-CRBTA 2-3/4" x 80" Deep Hole Drilling Machine

Hole sizes range from: .500" to 2.750"
Part length between chucks: 80"
Part diameter maximum: 9"
Maximum hole depth / ram stroke" 40"
Steady rest from: 1.377" to 9.645"
Main Motor Drive: 40 HP
Spindle RPM: 125 to 500 low range / 500 to 2000 high range
Max part weight: 1500 Lbs

Coolant system: 550 gallons w/(1) 40HP motor driving a 90GPM pump w/750PSI
@ 70GPM.


Equipped With

PLC Control
Spindles are counter rotating
