Used O-M TMD 35/50 | Lathes, VTL (Vertical Turret Lathe)

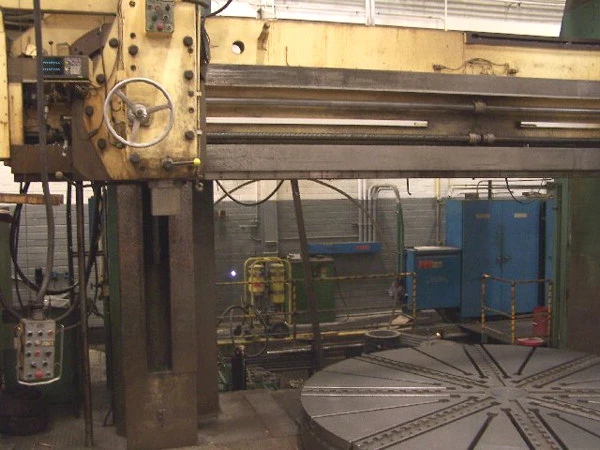

OM Model TMD 35/50 138" Adjustable Rail Vertical Boring Mill

Featuring: (2) Ram Heads, Digital Readout, Dual Pendants


196" Swing /138" Table, O-M Tmd 35/50,134" Under Rail, 35 Rpm, 2 Rams

Table Diameter: 137.8"
Maximum Swing: 196.8"
Maximum Turning Height Above Table: 133.8"
Maximum Weight Of Work Piece On Table: 132,000 Lbs
Table Speeds (16 Steps In 4 Ranges): 0.26 To 35 Rpm
Feed Rate (16 Steps): 0.00196 To 0.39 Ipr
Vertical Travel Of Rams: 71"
Overall Size:
Maximum Height From Bottom Of Base To Top
With Rams Up: 24' 2"

Equipped With:

Left And Right Hand Rams
Digital Readouts On Each Ram
Pendant Control For Each Ram
