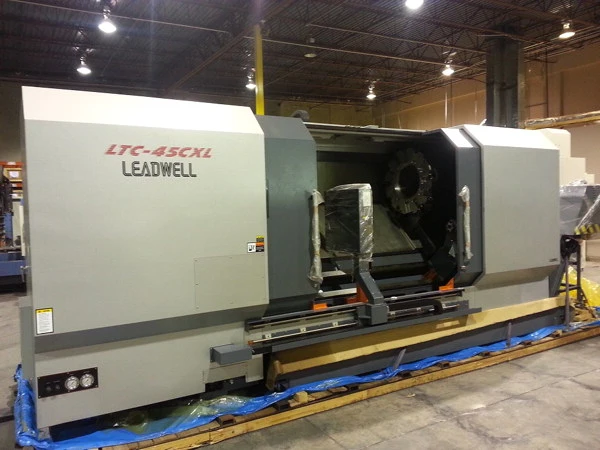

2013 Leadwell Model LTC 45CXL CNC Slant Bed Turning Center

Swing Over Bed: 29.1"
Swing Over Cross Slide: 27.5"
Max Turning Diameter: 25.6"
X-Axis Travel: 12.5"
Z Axis Travel: 83.0"
Max. Turning Length: 79.9"
X-Axis Feedrate: 590 IPM
Z-Axis Feedrate: 787 IPM
Spindle Bore: 5.0"
Bar Capacity: 4.5"
Turret Positions: 12
Spindle Nose: A2-11
Spindle Speeds: 2,000 RPM
Main Motor Drive: 60 HP


Equipped with:

Fanuc 0iTD CNC Control
15" 3-Jaw Power Chuck
15.8" Curvic Coupling Turret
45 Degree Slant Bed Construction
Chip Conveyor and Bucket
Programmable Tailstock Body
Flood Coolant Unit
Heat Exchanger
(1) Set of Soft Jaws
(1) Set of Hard Jaws
(6) ID Boring Bar Holders
(2) OD Extended Turn Tool Holders
(1) ID Face and ID Tool Holder
(1) Set of Boring Bar Bushings
Rigid Box Way Construction
