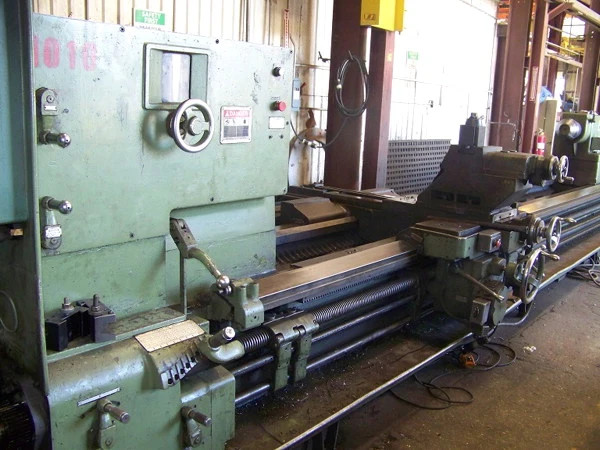

1969 LeBlond Model 4025-36 Heavy Duty 52" x 30' Engine Lathe
1969 LeBlond Model 4025-36 Heavy Duty 52" x 30' Engine Lathe
Swing Over Bed: 50"
Distance Between Center: 360"
Maximum Swing Over Carriage: 30"
Tailstock Quill Diameter: 8"
Tailstock Quill: #6MT
Tailstock Spindle Travel: 18"
Spindle Speeds: (36) 6 - 600 RPM
Width of Bed: 36"
Hole Thru Spindle: 3.0625"
Feeds (48): .004 - 250 IPM
Threading (48): 3/4 to 46 TPI
Motor HP (Maximum Capacity): 75 HP
Equipped With
48" 4 Jaw Chuck
Taper Attachment
(4) Steady Rests
Power Rapid Traverse
36" 3 Point Roller Bearing Steady Rest
20" 3 Point Roller Bearing Steady Rest
12" 3 Point Roller Bearing Steady Rest
Heavy Duty Tailstock
Quick Change Tool Post
