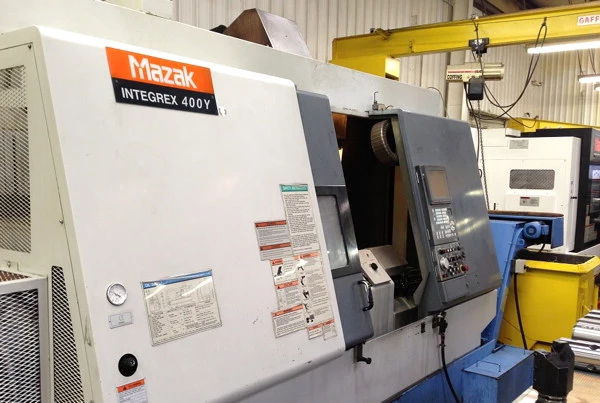

1999 MAZAK INTEGREX 400Y

1999 Mazak Model Integrex 400Y 5-Axis Live Tool CNC Lathe

Maximum Swing/Over Carriage: 24.01"
Maximum Cutting Diameter-Chucking: 24.01"
Travel X axis: 22.83"
Travel Y axis: +/- 4.13"
Travel Z axis: 43.11"
B Axis Movement: 225 Degrees- 1 deg. Incre.
Spindle Index: .001 Degree
Spindle Nose / Spindle Bore: A2-8" / 3.46"
Spindle Speed: 35 - 3,000 RPM
Spindle HP Cont / 30 Min: 40 HP / 30 HP
Rotary Tool Spindle Nose: KM 63
Rotary Tool Spindle Speed: 15 - 6,000 RPM
Rotary Tool Spindle HP: 20 HP
Magazine Capacity: 80 Tool Magazine
Rapid Traverse X, Z / Y: 1181 / 591 IPM
Tailstock Body / Quill Travel: 36.22" / 5.12"
Machine Dimensions approx.: 150"x89"x107"
Machine Weight: 19,600 lbs.

Equipped with:

12" SMW Quick Change Hydraulic Chuck
-several sets of jaws included
80 Tool Magazine
"Y" Axis Capability
Full "C" Spindle Increment
B Axis Pendulum Style Head
Automatic Tool Eye
Programmable Tailstock
Coolant Thru Mill Head
Chip Conveyor
EIA/ISO Input Function (g code program.)
EIA/ISO Option Package for B axis
KM 63 Type Spindle
X Axis Scale Feedback
600 Macro Variables
User Definable Macros
EIA Helical Interpolation
EIA Coordinate Rotation
PCMCIA Interface - 2 Slots
3.5" Floppy Disk Drive
Milling Tool Synchronous Tapping
3 Color Signal Light Tower
Over 100 KM63 Holders Available For Extra Cost of $ 12,500
