Used 1996 NISSHINBO HTP-1000 | Punches, Turret

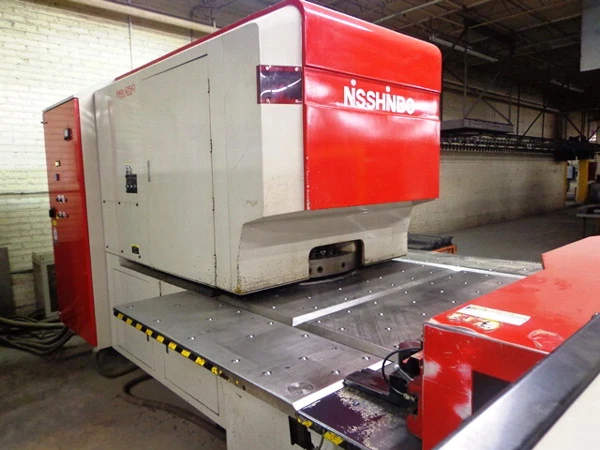

1996 Nisshinbo Model HIQ-1250 22 Ton CNC Turret Punch

Nominal Tonnage: 22 Ton
Maximum material thickness: .250"
Hole capacity: 3.500"
Max Work Piece Size: 49.6" x 49.6"
Ram Stroke: 1.968"
Turret drive: bi-directional
Turret configuration: 37 stations
Production Rates:
X: 300/800 HPM
Y: 320/600 HPM
Table feed Rates:
X: 3,150 IPM
Y: 2,750 IPM
Auto-index speed: 30 RPM (bi-directional)
Electrical: 230/460/3/60, 42 KVA
Air requirements: 3.5 SCFM/.5 CFM at 90 psi


Equipped With

Nisshinbo Copy-NUC control with Palvison featuring:
RS232 Comm Port
Thick Turret
(3) Dual Auto Index Stations
Hydraulic Servo Ram with full position feed back
Upper and lower turret tool station bushings
Software defined work clamps

Approximate Dimensions: 206"(LR) X 86"(FB) X 87"(H)
Approximate Weight: 32,000 Lbs.
