Used 1997 YANG ML 25A | Lathes, CNC

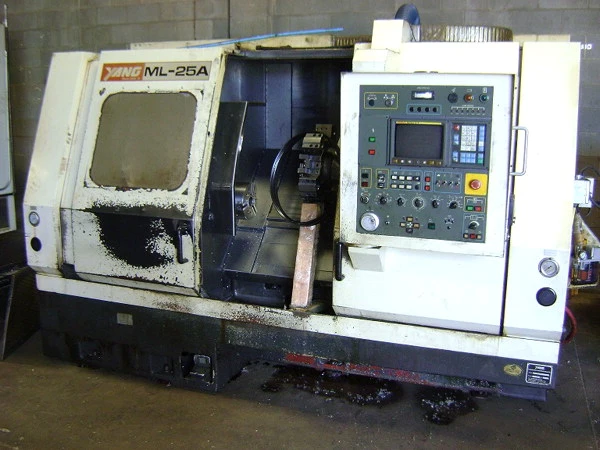

1997 Yang Model ML25A 2 Axis Slant Bed CNC Lathe

Maximum Swing Diameter: 21.65"
Maximum Turned Diameter 11.02"
Maximum Distance between Centres: 23.62"
Maximum Cross Travel X Axis: 8.50"
Maximum Longitudinal Travel Z Axis: 20.4"
Spindle Nose: ASA A2-6
Spindle Bore: 3.03
Bar Capacity: 2.51"
Chuck Diameter: 9.84"
Spindle Speeds: 45 - 4,500rpm
Spindle Power: 18.5kW A.C.
No. of Tools in Turret 8
Slant Bed Angle: 45
Rapid Traverse Speed on X Axis: 20/min.
Rapid Traverse Speed on Z Axis: 20/min.
Machine Weight: 5,250Kg

Equipped With


Fanuc 0-T CNC
Chip Conveyor
Tailstock
