Used 1998 DOOSAN DOOTURN 310 | Lathes, CNC

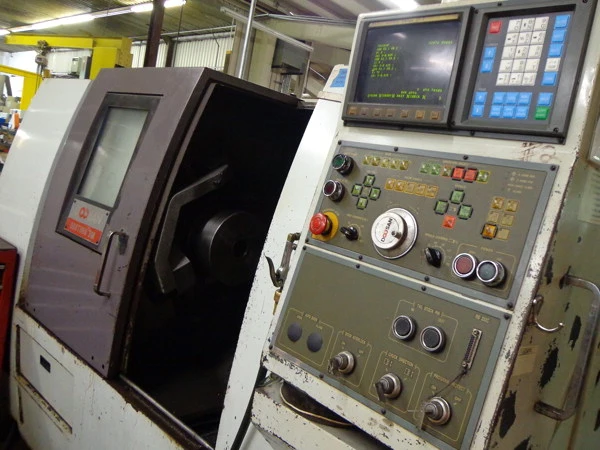

1998 Doosan Model Dooturn 310 2 Axis CNC Lathe

Swing over Bed: 19.68"
Distance Between Centers: 17.71"
Maximum Turning Diameter: 12.20"
Maximum Turning Length: 17.71"
Spindle Nose: ASA A2-6
Hole Thru Spindle: 3.03"
Spindle Speeds: 45-4500 RPM
Turret Type: V12
Maximum Number of Tools: 12
X-Axis Travel: 7.87"
Z-Axis Travel: 17.72"
Rapid Traverse Rate X-Axis: 78.7 FPM
Rapid Traverse Rate Z-Axis: 98.4 FPM
Tailstock Quill Diameter: 3.14"
Tailstock Center Bore: No. 4 MT
Tailstock Quill Travel: 4.72"
Main Motor (Continuous/30 Minute Rating):10 HP / 12 HP

Equipped With

Fanuc 0T
Hydraulic Tailstock
Chip Conveyor.
10" 3-Jaw Chuck
Collet Chuck

Approximate Weight: 7,000 Lbs.
