Used 1980 ARBOGA 3512 | Drills, Radial

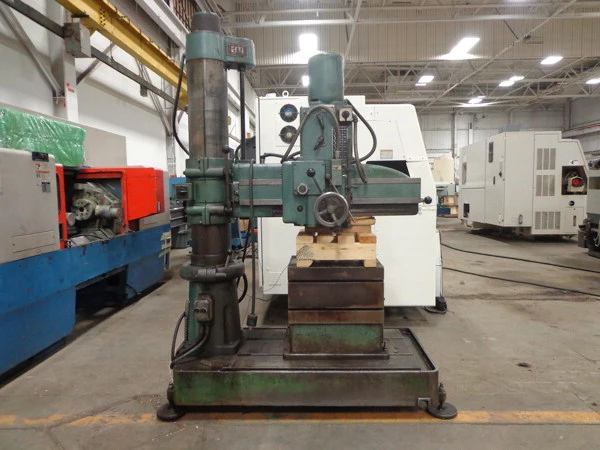

1980 Arboga Model 3512 3' x 9" Radial Arm Drilling Machine

Length of Arm: 39"
Diameter of Column: 9"
Horizontal Head Travel on Arm: 30"
Vertical Travel of Spindle: 12"
Spindle Speeds: 70 - 1965 RPM
Spindle to Base: 46.25"
Feed Range: .006 - .010 IPR

Complete With:

16" x 20" T Slotted Box Table
38" x 24" Base (Working Capacity)
Insta Brake
Manual Clamping
Power Elevation
Coolant Pump

Approximate Dimensions: 56"(LR) X 27"(FB) X 80"(H)
Approximate Weight: 3,000 Lbs.
