Used 1973 PACIFIC 500R20 | Shears, Power Squaring (In)

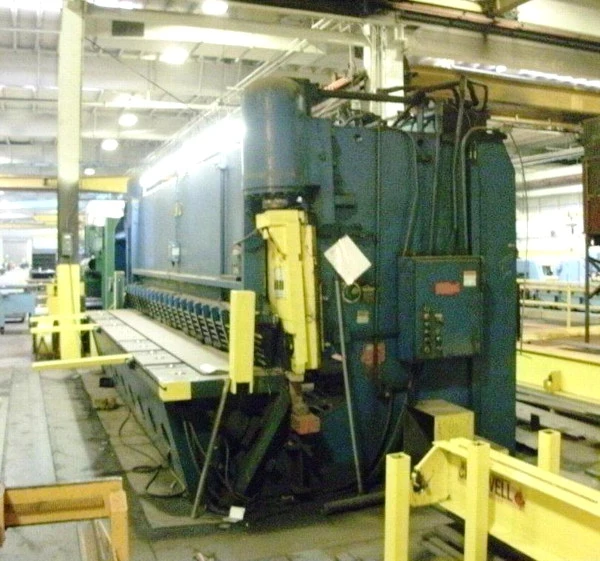

Pacific 500R20 20' x 1/2" Hydraulic Shear

CAPACITY: 20' X 1/2" @ 3/8"/FT. RAKE ANGLE M.S.
MAXIMUM RAKE ANGLE: 5/8"/FT.
SHEARING CAPACITY AT MAS. RAKE: 20' X 3/4"
KNIFE SIZE: 1-1/8" X 5" X 244"
DISTANCE BETWEEN HOUSTINS: 20'3"
THROAT DEPTH: 18"
HOLDDOWN PRESSSURE: 63 TONS (TOTAL)
ADVANCE SPEED: 144"/MIN RAPID ADVANCE
96"/MIN NORMAL ADVANCE
RETURN SPEED: 270"/MIN
TABLE HEIGHT ABOVE FLOOR: 36"
BED PROJECTION BELOW FLOOR: 8"
MAIN MOTOR: 40 HP

EQUIPPED WITH:
48" FRONT OPERATED POWER BACK GAUGE
BALL TRANSFERS IN BED
AUTOMATIC LUBRICATION
FOOT SWITCH
OAD: 22'7" L-R X 9'5" F-B X 12'0" HIGH
APPROXIMATE WEIGHT: 93,000 LBS.
