Used 2007 EUMACH DMV-5030 | Millers, Vertical

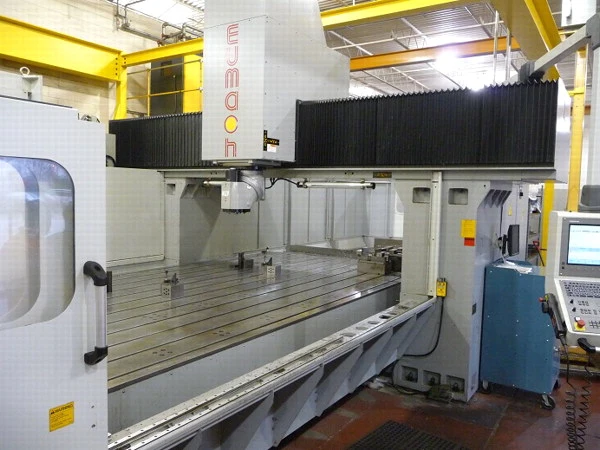

2007 Eumach DMV-5030 Double Column Vertical Bridge Type Mill

102.36" x 197"
Table Weight: 57,320 LBS
X-Axis Travel: 205"
Y-Axis Travel: 122"
Z-Axis Travel: 27.5"
Distance Between Columns: 119.29"
Spindle Speed: 0 - 3500 RPM
Spindle Taper: Cat 50
Spindle Motor: 30 HP
Spindle Ram Size: 14.96" Square
Spindle Nose to Table Top: 5.59' - 33.15"
Tools: 180
Rapid Traverse Rates (X & Y / Z): 480 / 393 IPM
Table Load Capacity: 44,000 lbs.
Rapid Traverse Rates: 390 IPM
Tool Change Time (T - T): 8 Seconds
Max Tool Diameter: 4.92" / 9.84"
Max Tool Length: 13.78'
Max Tool Weight: 44 lbs.
Machine Weight: 110,000 lbs.

Equipped With

Heidenhain iTNC 530 CNC Control
15" Color LCD
Vertical and Horizontal Machining Capability
Emana VGCI OP-4 Milling Head (2.5 Degrees)
Heidenhain Linear Scale Feedback System
Coolant Thru Spindle (290 psi)
Heidenhain TT-130 Auto Tool Length Measurement
Heidenhain TS-220 Touch Probe
180 Tool Magazine
Three Color Tower Light
Remote Manual Pulse Generator

Approximate Dimensions: 504"(LR) X 248"(FB) X 187"(H)
