Used RIBON RUR1000 | Grinders, Cylindrical, Universal

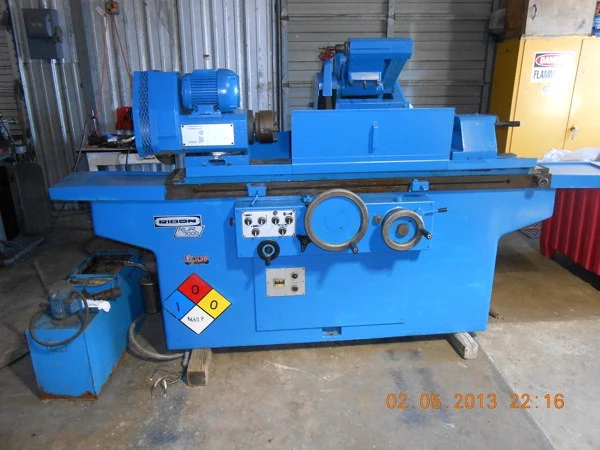

Ribon Model RUR1000 Universal Cylindrical Grinder

Distance Between Centers: 40" / 1000 mm
Center Height onTable: 5.5"
Max Swing: 11"
Max Weight Between Centers: 10 lbs
Max Weight on Chuck: 40 lbs
Wheel Size: 14" X 1 3/4" X 5"
Wheel Max Admitted Cap: 2 3/8"
Workhead Bore Dia: 15/16"
Workhead Taper: 4 MT
Workhead Swivel: -30 + 90 deg
Wheelhead Swivel: 90 deg
Internal Grinding Spindle: 18000
Wheel Head Motor: 3HP



Equipped With:

Approximate Dimensions: 157"(LR) X 53"(FB)
Approximate Weight: 3,600 Lbs.
