Used 2002 GILDEMEISTER CTX 400 | Lathes, CNC

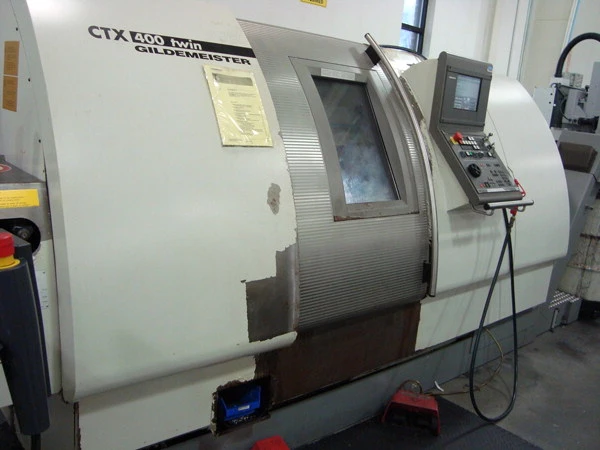

2002 Gildemeister Model CTX 400 Series II Dual Spindle/Live Tool Y Axis CNC Lathe

Max Swing: 22" / 570mm
Turning diameter: 16.53"/ 420 mm
Turning length: 25" / 635 mm
Spindle bore: 3.11" / 79 mm
Spindle turning speed range: 25 - 5000 U/min
Spindle motor: 28/21 kW
Subspindle - speed range : 25 - 5000 U/min
Spindle motor: 12/9 kW
Subspindle carriage Z-axis: 3.11" / 575 mm
Y-Axis: 3.00"/ +- 40 mm
Z-Axis: 25" / 635 mm
X-Axis: 8.6" / 220 mm
Rapid traverse: 20/24 m/min
Total power requirement: 42 kW

Equipped With

HEIDENHAIN TURN PLUS Pilot 4290 Version 6.1
Chip Conveyor
Collet Chucks Micro Centric SP.0118.0167.00 Main CB42-ND sub
Micro Centric CB42-ND Sub
(2) 3- jaw chucks are Shunk 225-71 Main 165-37 Sub
LNS Quick Load Barfeed
Tool Presetter
Parts Catcher
Live Tool Holders
Part Exchanger between Main and Sub Spindle
Sub-Spindle Can Be Used As Tailstock
Coolant Thru Sub-Spindle
Full C-Axis on Both Spindles
Transformer-480/3/60
Full Set of Manuals
Video Available
