Used 2006 CARELL 4HR1004 | Rolls, Bending & Curving

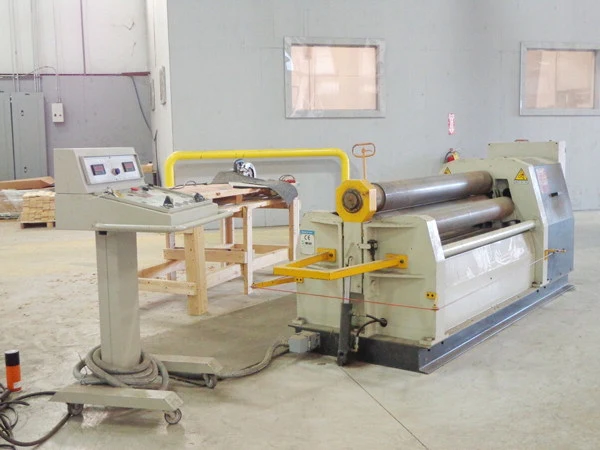

2006 Carell Model 4RH1004 4/2 (4) Roll 60" x 7/32" Double Pinch Bending Roll

Nominal Rated Capacity: 60" X 7/32"
Number Of Rolls: 4
Overall Length Of Rolls: 60"
Diameter Of Top Roll: 6.69"
Diameter of Side Rolls/ Bottom: 5.90"
Current Electrical Arrangement: 460/3/60

Equipped With

Hydraulic Drop End
Double Pinch
Imcar Control
Manuals

Standard Features

Machine frame in heavy steel plate and structural
sections, electro- welded, stress relieved and precision CNC machined
Hydraulic Pinch Adjustment from control station, adjustable pinch pressure
Top & pinch rolls driven via hydraulic motor/planetary
reducer for near 100% efficiency in torque transmission
to the rolls, energy efficient simplicity
Hydraulic powered drop end actuated from control station for rapid part
removal
All rolls journaled in SKF type high dynamic load bearings with self
purging seals form maximum performance under oblique loads when rolling
cones
Automatic tilt of both lateral rolls from machine
lateral rolls from machine mounted controls for cone rolling
Machine controls in low voltage, detached foot pedals
or rotation with emergency stop, machine mounted
controls for all hydraulic movements
Central automated and timed lubrication available on request
Circumferential safety trip wire guard with 3 way switch
E-Stops on controls
Drop end guard and safety clamp
Instruction manual and service tools
