Used 1992 MAZAK MULTIPLEX 620 | Lathes, CNC

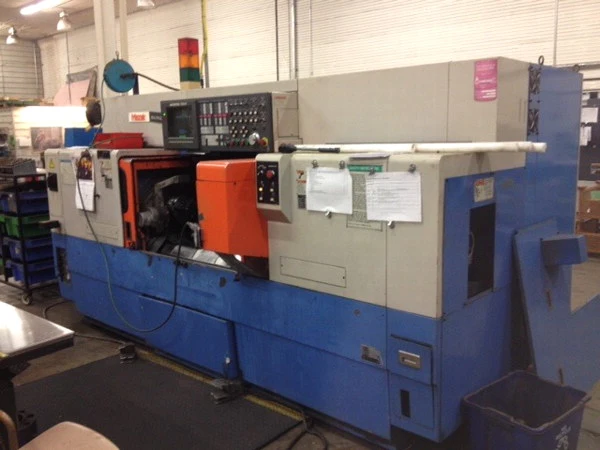

1992 Mazak Model Multiplex 620 Spindle Dual Turret Live Tool CNC Lathe
Max. Swing: 15.35"
Max. Cutting Diameter: 10.24"
Max. Cutting Length for Chuck Work: 7.09"
Distance Between Spindle Faces: 10.82" - 46.45"
X-Axis Travel, Turrets #1 & #2 : 9.05"
Z-Axis Travel, Turrets #1 & 2: 16.93",19.09"
Spindle Speeds: 5000 RPM
Spindle Motor: 25 HP
Spindle Bore: 2.4"
Rotary Tools Speed: 35 ~ 4000 RPM
Turret Type: 2 x 12 Pos. Drum
Number of Turrets: 2 x 12, 24 Pos.
Rapid Traverse X, Z / C: 945 IPM / 400 RPM
Machine Dimensions 143"x74"x81"

Equipped with

Mazatrol T-32-6 CNC Control
(2) 8" 3 Jaw Chucks
(8) Live Tool Holders
Rear Discharge Chip Conveyor
(2) Automatic Tool Eye
Auto Chuck Jaws Open/Close
Operation Status Lights
Additional Coolant Nozzles L & R Heads
Overload Detection
Miscellaneous Tooling (ID/OD Holders)
6 Live Milling Heads
All Available Manuals

Approximate Dimensions: 143"(LR) X 74"(FB) X 81"(H)
Approximate Weight: 17,860 Lbs.
