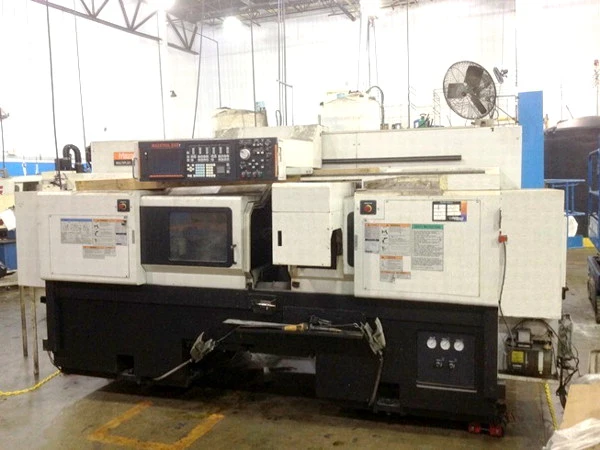

Used 2006 MAZAK MULTIPLEX 4300 | Lathes, CNC

Mazak Model Multiplex 4300 4 Axis CNC Turning Center

Main Spindle

Turning Diameters

Nominal: 9.000 "
Maximum: 16.930 "

Turning Lengths
Nominal: 8.860 "
Maximum: 22.04"

Maximum Swing: 22.040 "

Chuck Diameter Standard: 10"
Chuck Diameter Max: 12"

Collet Type/ Capacity

Bar Capacity
Standard: 3.000 "

Headstock - Spindle 1
Nose: A2-8
Bore: 3.460 "
Speed: 35 - 4000 RPM
Drive Motor (HP): 30.0

Headstock - Spindle 2
Nose: A2-8
Bore: 3.460 "
Speed: 35 - 4000 RPM
Drive Motor (HP): 30.0

Turret 1: 12 Postion
Turret 2: 12 Postion

Rapid Traverse Rate: 945 IPM

Travels: X1 (Std.) 12.2"
Travels: Z1 (Std.) 23.8"
Travels: X2 (Std.) 12.2"
Travels: Z2 (Std.) 23.8"

Equipped With

Mazatrol 640T CNC Control
(2) Collet Chucks
Chip Conveyor
Tool Presetters

Year Mfg. 2006
