Used 1981 LANDIS 1R | Grinders, Cylindrical, Universal

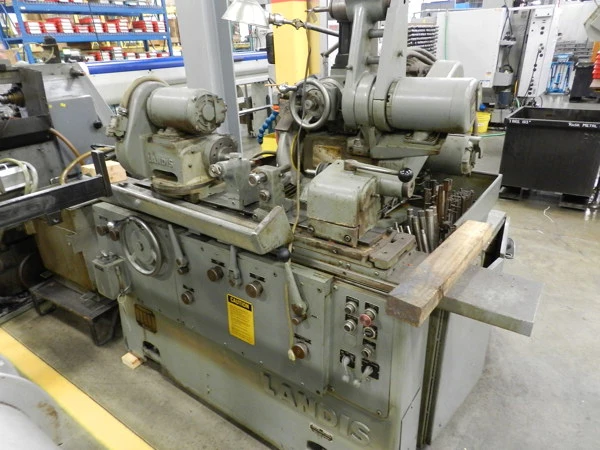

1981 10" X 20" LANDIS 1R UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

SPECIFICATION: NOMINAL SWING OVER TABLE 10"
MAXIMUM SWING OVER TABLE 10-7/8"
NOMINAL DISTANCE BETWEEN CENTERS 20"
HYDRAULIC TABLE TRAVERSE 2" TO 240" IPM
TRAVERSE PER TURN OF HANDWHEEL 0.200"
TRAVERSE HANDWHEEL GRADUATIONS 0.001"
SWIVEL TABLE GRADUATED 20 DEGREES, 4" PER FOOT

WHEELHEAD:
WHEELHEAD SWIVELS LEFT & RIGHT OF CENTER 90 DEG.
WHEEL SIZE 12" DIAMETER
MAXIMUM WIDTH, FULL WHEEL 3"
MAXIMUM HYDRAULIC INFEED - ON DIAMETER 0.090"
RAPID INFEED STROKE 1"
MINIMUM FEED GRADUATIONS - ON DIAMETER 0.000050"
WORK DIAMETER REDUCTION PER REVOLUTION OF
HANDWHEEL 0.100"
WORK DIAMETER REDUCTION PER REVOLUTION OF
FINE FEED KNOB 0.001"
WHEELHEAD MOTOR 5 HP

WORKHEAD:
WORKHEAD SWIVELS TOWARD WHEELHEAD 90 DEGREES
WORKHEAD SWIVELS AWAY FROM WHEELHEAD 30 DEGREES
WORKHEAD SPINDLE SPEEDS (6) 60 TO 600 RPM
WORKHEAD SPINDLE NOSE A2-5"
WORKHEAD MOTOR 1/4 HP

APPROXIMATE WEIGHT 4,150 LBS
APPROXIMATE DIMENSIONS 8'L X 4'W X 6'6"HT

EQUIPPED WITH:
SWING DOWN INTERNAL GRINDING ATTACHMENT WITH I.D. SPINDLE
UNIVERSAL WHEELHEAD AND UNIVERSAL WORKHEAD
12" x 1" to 2"WIDTH x 5"BORE GRINDING WHEEL
HYDRAULIC TABLE TRAVERSE
AUTO INFEED @ TABLE REVERSALS
AUTO PLUNGE FEED
POWER RAPID WHEELHEAD ADVANCE & RETRACTION
SPARKOUT TIMER
DUAL LIVE/DEAD SPINDLE HEADSTOCK
MAGNETIC CHUCK, HIGH HOLDING POWER (RADIAL POLE PATTERN),
MOUNTED ON ADAPTOR PLATE, MOUNTED ON THE WORKHEAD FACE
HARD FILM MICROSHERE WHEEL SPINDLE BEARINGS
COOLANT SYSTEM
CARRIAGE AND WHEELHEAD WAYS ARE AUTOMATICALLY
LUBRICATED
MACHINE MOTORS ARE WIRED FOR 3/60/220-440 VOLT OPERATION
