Used 1977 SHIBAURA BT 10BR3 | Boring Mills, Horizontal, Table Type

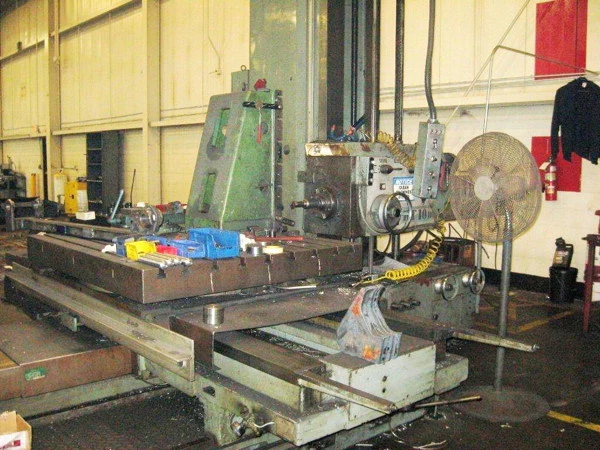

Shibaura Model BT-10BR3 4" Table Type Horizontal Boring Mill

Table Size: 55.1" X 63"
Table Cross Travel: 70.9"
Table Longitudinal Travel: 57.1"
Headstock Vertical Travel: 57.1"
Spindle Travel: 28"
Spindle Diameter: 3.94"
Spindle Taper: 50
Spindle Speeds: 20 - 1000 RPM
Feeds: .0009 - .67 IPR
Table Load Capacity: 13,890 Lbs
Main Motor: 15 HP


Equipped with:

Built In Rotary Table
Power Draw Bar
Pendant Control
Angle Plate
Stainless Steel Way Covers
Facing Head
Video Available

Approximate Weight: 40,800 Lbs.

Year Mfg. 1977
