Used 1972 LEBLOND 26" X144" | Lathes, Engine

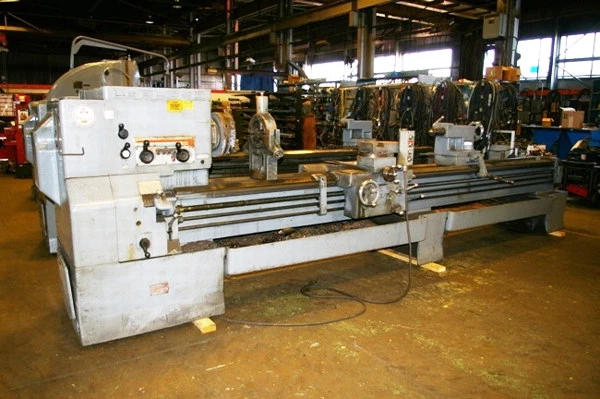

26" X 144" LEBLOND REGAL 24" ENGINE LATHE
S/N 5H567 NEW 1972

RATED SWING ------------------------------- 24"
SWING OVER BED ---------------------------- 26"
SWING OVER CROSS SLIDE -------------------- 18-1/4"
DISTANCE BETWEEN CENTERS ------------------ 150"
HOLE THROUGH SPINDLE ---------------------- 2-3/16"
SPINDLE NOSE ------------------------------ L2
SPINDLE SPEEDS ---- ( 12 ) ---------------- 18 TO 720 RPM
THREADS ----------- ( 48 ) ---------------- 2 TO 112 TPI
HARDENED BED, WIDTH ----------------------- 17"
MAIN DRIVE MOTOR -------------------------- 10 HP 230/460/3/60
APPROXIMATE MACHINE WEIGHT ---------------- 7,800 LBS

EQUIPPED WITH ---

THREADING Dial
12" 3 JAW CHUCK
TOOL POST
CHIP PAN
3 POINT ROLLER TYPE STEADY REST
