Used 1980 LANSING G | Lathes, Engine

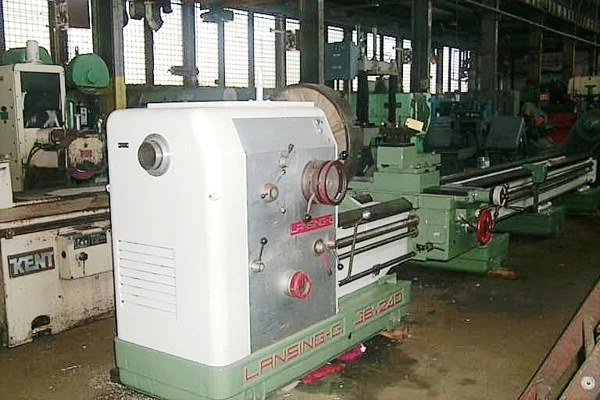

(1) Used 36"/46" x 237" LANSING Gap-Bed Engine Lathe,
Model "G", New est 1980

Specifications:

Actual Swing Over Bed:36"
Swing Over Gap:46"
Swing Over Cross Slide:25"
Distance Center to Center:237"
Spindle Speeds:(16) 10 576 RPM
Feeds - Longitudinal:(40) 0.0045" 0.0672" / Rev.
- Cross:(40) 0.0024" 0.0352" / Rev.
Threads - English:4 60 TPI
- Metric:0.5 7.5 TPmm
Spindle Nose:D1 11"
Spindle Hole Diameter:4.25"
Motor:25 HP 3/60
Overall Dimensions (Approx.):323" x 68" x 68"
Weight (Est.):

Equipped With:

28" 4-Jaw Chuck
21.5" Diameter Steady Rest
4-Way Tool Post
Powered Rapid Traverse to Carriage and Cross Slide

F.O.B. Chicago, IL
