Used 2000 BIESSE ROVER 20 | Woodworking Shapers

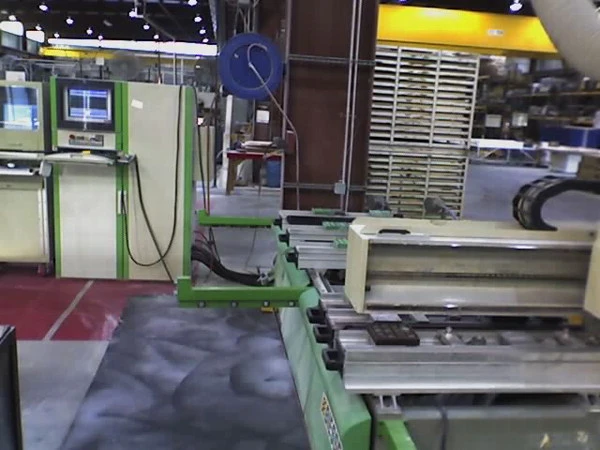

2000 Biesse Rover 20 CNC Woodworking Router

X Axis: 113.9" (2,893 mm)
Y Axis: 35.4" (898 mm) for boring/ 37.4" (950 mm) for routing
Max. panel thickness: 2.6"
Positioning Speed: X axis 246 FPM (75 MPM)
Positioning Speed: Y axis 147 FPM (45 MPM)
Positioning Speed: Z axis 49 FPM (15 MPM)

Features

X-axis moves on high precision prismatic guides & ground helical rack
Y & Z axis via hardened ground ball screw.
(16) Boring spindles driven by 2.3 HP (1.7 kW) - 4,000 RPM motor
(10) independent vertical spindles with (6) in X axis & (4) in Y axis
(6) horizontal spindles with (2+2) in the "X" axis & (1+1) in the "Y" axis
2.6" max. boring depth.
