Used 1999 HAAS VF-5 | Machining Centers, Vertical

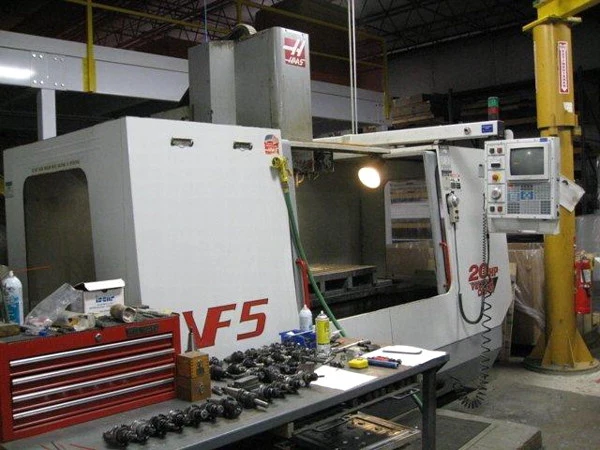

(1) 1999 Haas Model VF-5 3 Axis Vertical Machinng Center

Table Dimensions (Overall): 23" x 52"
Table Load Capacity: 4000 LBS
Table Longitudinal Travel (X-Axis): 50"
Saddle Cross Travel (Y-Axis): 26"
Quill Vertical Travel (Z-Axis): 25"
Spindle Nose to Table, Maximum: 32"
Spindle Nose to Table, Minimum: 7"
Spindle Taper: #40
Spindle Speeds, Range: 0 to 7500 RPM
Cutting Feedrate, Maximum: 500 IPM
Rapid Traverse Rates, X, Y, & Z-Axis: 710 IPM
Tool Diameter, Maximum: 3.5"
Tool Weight, Maximum: 12 LBS
Tool-To-Tool: 2.8 SECONDS
Chip-To-Chip: 3.6 SECONDS
Spindle Motor, Horsepower Rating: 20 HP
Overall Dimenstion: 11'5" x 9'6"
Overall Height: 9'10"
Weight, Approximately: 14600 LBS

Equipped With

Haas CNC Control
Chip Conveyor
Programmable Coolant Nozzle
3.5" Floppy Drive
RS-232
Ethernet Hook Up
Quickcode Programming
Rigid Tap
Coordinate Rotation, Scaling
Custom Macros
Thru Spindle Coolant with air blast
External Coolant Filter for TSC
16MB Expanded Memory
600 Blocks Per Second with High Speed Machining Activated
Remote Jog Handle
