Used 1998 FADAL VMC-8030HT/907-1 | Machining Centers, Vertical

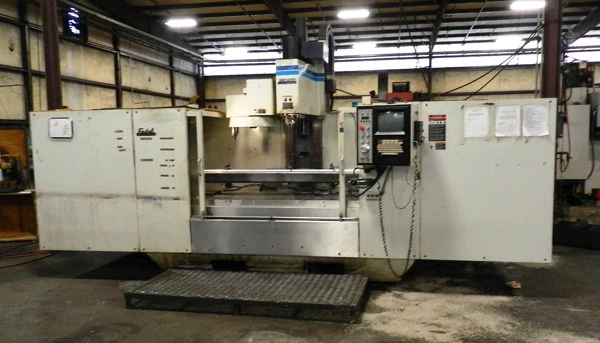

(1) 1998 Fadal Model VMC-8030HT/907-1 4th Axis CNC Vertical Machining Center

X-Axis Travel: 80"
Y-Axis Travel: 30"
Z-Axis Travel: 30"
Table Size: 82.5" x 30"
Spindle Speed: 10,000 RPM
Main Motor: 30 / 22.5 HP
Spindle Taper: Cat 40
Spindle Nose to Table Top: 5.5"-35.5"
Table Load Capacity: 3,700 lbs.
Tool Capacity: 21 ATC
Rapid Traverse Rates: 400 IPM
Spindle Torque: 220 Ft. Lbs.
Max Tool Diameter: 3"/6"
Max Tool Length: 15"
Machine Weight: 18,000 Lbs.

Equipped with:

Fadal 88HS CNC Control
Wired for 4th Axis
Flood Coolant
Manual Pulse Generator
Full Enclosure
