Good 1997 NEWALL SCG-53 | Grinders, Vertical Universal

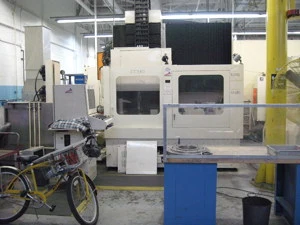

(2000) Newall (Campbell/Springfield Type) SCG-53 45" CNC Univ Vertical Grinder

Model SCG-53

45.2" Max. work-piece diameter, 27.5" Max. work-piece height, 4-Axis,
Fanuc 16 CNC.

Specifications and Equipment

Maximum work-piece diameter: 45.27"
Maximum work-piece height: 27.5"
Diameter of C-Axis table: 28"
C-Axis (work-piece) rotation speed: Programmable from 0 to 200 RPM
X-Axis travel (carriage cross): 51.18"
Z-axis travel (wheel-head vert): 27.5"
B-Axis swivel (wheel-head swivel): + / - 15 Degress
B-Axis command increment: 0.001 Degrees
Maximum designed wheel speed: 10,000 RPM
Automatic Tool Changer: 12 Tools (wheel with arbor)

CNC Type:

Fanuc 16 coupled to PC with Newall dedicated machine control software

Additional features:

17 HP (13kW) 10,000 RPM (max.) Variable speed wheel drive motor,
Fanuc Alpha Series digitial AC drives and motors on all axes,
Euchner Automatic tool identification system for ATC, Automatic tool
(grinding wheel) measurement via Renishaw LP2 touch-trigger probe,
Automatic work-piece measurement via spindle-mounted LVDT probe
(stored in ATC when not in use), Automatic wheel dressing system,
Mist collection system, Automatic lubrication system, Full enclosure,
12 position Automatic Tool Changer, Tailstock and manuals.
