Used 1965 MEUSER | Lathes, Gap

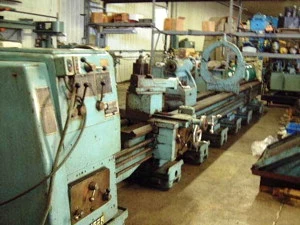

1965 MEUSER GAP BED 42"/54" SWING X 247" CENTERS ENGINE LATHE

SPECIFICATIONS (PRELIMINARY):

SWING OVER BED ---------------------------- 42"
SWING IN GAP ------------------------------ 54"
SWING OVER CROSS SLIDE -------------------- 32"
DISTANCE BETWEEN CENTERS ------------------ 247"
SPINDLE SPEEDS ----- ( 12 ) --------------- 28 TO 1250 RPM
FEEDS -------------- ( 44 ) --------------- .0012 TO .0512 IPR
HOLE THROUGH SPINDLE ---------------------- 3-1/8"
SPINDLE ----------------------------------- D1-11 CAMLOCK
DRIVE ------------------------------------- 20 HP 220/3/60 MOTOR
APPROXIMATE MACHINE WEIGHT ---------------- 16,000 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 316"(LR) X 64"(FB) X 69"(H)

EQUIPPED WITH ---

INCH/METRIC THREADING
40" 4 JAW CHUCK
18" 4 JAW CHUCK
( 3 ) STEADY RESTS
ALORIS TOOL POST
TRAV-A-DIAL
CHIP PAN
COOLANT
