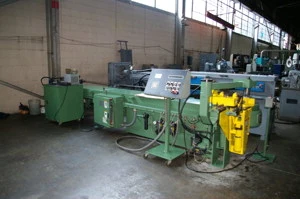

3-1/2" PINES MODEL #2 HYDRAULIC ROTARY MANDREL TYPE TUBE BENDING MACHINE

SPECIFICATIONS (PRELIMINARY):

COUNTER-CLOCKWISE ROTATION
BENDING CAPACITIES:
I.P.S. EXTRA HEAVY PIPE ------------------ 2"
NON-FERROUS TUBING, Y.P. TO 12,000 PSI --- 3-1/2" O.D. X .188" WALL
NON-FERROUS TUBING, Y.P. TO 25,000 PSI --- 3-1/2" O.D. X .120" WALL
STEEL TUBING, Y.P. TO 40,000 PSI --------- 3-1/2" O.D. X .083" WALL
STAINLESS STEEL TUBING, Y.P. TO 60,000 PSI 3" O.D. X .065" WALL
STEEL BAR ROUND, Y.P. TO 40,000 PSI ------ 1-7/8" DIAMETER
STEEL BAR SQUARE, Y.P. TO 40,000 PSI ----- 1-11/16" SQUARE
ANGLE IRON, Y.P. TO 40,000 PSI ----------- 3" X 3" X 5/16"
RECTANGULAR TUBING MILD STEEL, E-PLANE --- 1-1/2" X 3" X .148"
RECTANGULAR TUBING MILD STEEL, H-PLANE --- 1-1/2" X 2-1/2" X .120"
MAXIMUM RADIUS STANDARD ------------------- 12"
MAXIMUM TUBE LENGTH OVER MANDREL ---------- 7'5"
APPROXIMATE BENDING ARM SPEED ------------- 5.5 RPM
APPROXIMATE MACHINE WEIGHT ---------------- 5,000 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 197"(LR) X 56"(FB) X 54"(H)

EQUIPPED WITH ---

COUNTER-CLOCKWISE ROTATION
DIGITAL DIAL-A-BEND
PRESSURE DIE ASSIST
HYDRAULIC MANDREL EXTRACTOR
PRESSURE DIE HOLDER
OVERHEAD TIE BAR ANCHOR ARM
AUTOMATIC SLIDE LUBRICATOR
