Used 1983 KURAKI | Boring Mills, Horizontal, Table Type

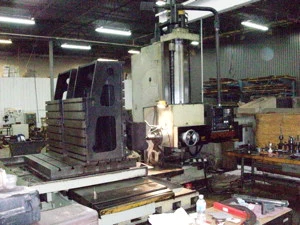

1983 Kuraki Model KBT-1105DX Table Type CNC Horizontal Boring Mill

4.33" Spindle, 50 Taper, 1,200 RPM, 63" X 55" Built-in rotary table, Fanuc 6M CNC.

Specifications (Preliminary):

Diameter of spindle bar: 4.33" (110mm)
Taper in spindle: No.50 (with power draw bolt)
Spindle speeds: 5 to 1,200 RPM
Rotary table area: 63" X 55" (1,600mm X 1,400mm)
X-Axis travel (table cross): 80" (2,000mm)
Y-Axis travel (spindle-head vert.): 59" (1,500mm)
Z-Axis travel (saddle long.): 59" (1,500mm)
W-Axis travel (Spindle bar in-out): 27.5" (700mm)
Present electrial arrangement: 3-Phase, 60-Cycles, 480-Volts AC
CNC Type: Fanuc 6M
Currently under power: Yes
