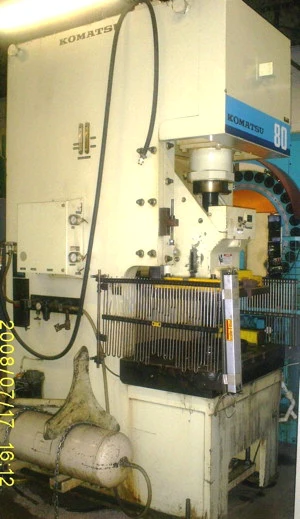

Used 1990 KOMATSU OBS-80-3 | Presses, Gap Frame (OBS)

Capacity: 88 Ton
Stroke: 5.1"
Shut Height Over Bed (SDAU): 19.3"
Slide Adjustment (Motorized): 3.1"
Bed Area: 39.3" L-R x 23.6" F-B
Slide Face Area: 21.7" L-R x 17.7" F-B (T-Slotted)
Opening Through Back: 25.8"
Throat Depth: 12.6"
Distance Bed to Floor: 35.5"
Speed (Variable): 37 - 75 SPM
Pneumatic Wet Clutch and Brake with Selector Controls
Arranged for Knockout L-R
Welded All Steel Frame

EQUIPPED WITH:

(2) Air Counterbalance Cylinders to Slide
Pneumatic Die Cushion in Bed
Hydraulic Overload Protection
T-Slotted Bolster Plate (5.5" Thick)
Automatic Lubrication System
AC Main Drive Eddy Current Motor
Electrical Controls
Dual Palm Button Operation
